This includes all of the moving parts from your finger to
the hammers, and we add pedals works and Player piano action parts via links down
this page.
If in doubt, please go to the diagram pages and double check to see if you are ordering the right part. It is impossible to give a "Back" button to return to so many pages, so please use your browser's "Back" button.
Also, I give you a link to the page which tells how to make the repair or installation of the new part.
"Nothing soothes me more, after a long and maddening course of
pianoforte
recitals, than to sit and have my teeth drilled."
George Bernard Shaw, Irish
playwright and music critic.
SEARCH THE WHOLE SITE
PARTS WHICH ARE NOT LISTED IN THIS CATALOG:
We may be able to custom make a part which is unusual. We would need a
sample to work with. If you can't find something exactly like you need, give
us a call and we will probably request that you email a picture first. We will
give you a quote based on quantity of parts needed and the amount of custom
fabrication required.
CLICK
HERE:
To study the diagrams of the
Grand, Spinet, Full
Upright, Bird Cage Action, or Grand
Damper Action
OTHER PIANO ACTION PARTS NOT LISTED BELOW
UPRIGHT PIANO ACTION PARTS-- Full Uprights, Spinets, and Consoles
CENTER PINS AND TOOLS
This covers the pins used in all flanges and hinged points in all actions.FELT PARTS FOR GRANDS AND UPRIGHTS
BUY THE TOOLS TO MAKE THE REPAIRS
LUBRICANTS AND LIQUID TREATMENTS
PLAYER PIANOS AND REED / PUMP ORGAN SUPPLIES
GO TO THE PLAYER PIANO PARTS PAGE:Also, we suggest you purchase Mr. Reblitz's book on Player Piano Repair on the Book Page.
GENERAL USE PIANO ACTION AND RESTORATION PARTS
These
are parts which may fit in any piano. These are VERY limited in scope.
You
will probably NOT see what you need here.
Go on to Grand
Piano Action Parts or Upright Piano Action Parts,
depending on your piano, and see if the parts are there.
Part
Description:
Part Number
Price

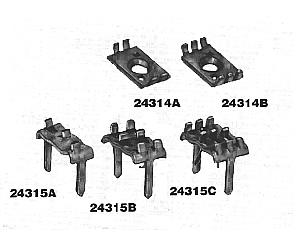

Agraffe
repair for split bridges and ruptured bridge pin wood area-
The Graphic
gives you two styles of repair. Also, be sure you get
the right repair
clip for one, two, or three wires!!!!!
Sold by the each-
All numbers in Graphic
at left
$ 3.00 each
Numbers 24314A-B are mounted by drilling
a hole and setting a screw.
Numbers 24315A-C mount
by drilling two holes
for the tabs and dropping the agraffe
into the holes.
All numbers in Graphic- Dozen-
$ 24.00
Grand Agraffes and Shimming Washers
Key Felt Bushing Cauls (not pictured)
This
is the favorite in production shops- Durable and accurate. HDPE resists glue.
Available in four sizes:
.147" per dozen
SP147
$ 25.00
.162" per dozen
SP162
$ 25.00
.138" per dozen
SP138 $
25.00
.125"
per dozen
SP125
$
25.00
Key Lever Front Rail Oval Pins- Used on all uprights
and grands.
1 7/16 inch by .146 inch- Nickel
plated- Per set of 100
SH352 $ 59.00
Key Lever Balance Rail Pins- Used on all uprights and
grands.
2-1/4 inches by .146 inch- Nickel
plated- Per set of 100
SH351A
$ 65.00
2-5/8 inches by .146 inch- Nickel plated- Per set of 100
SH351B $
77.00
2-1/4 inches by .160 inch- Nickel
plated- Per set of 100
SH351D
$ 97.00
2-5/8 inches
by .160 inch- Nickel plated- Per set of 100
SH351E
$ 130.00
One Assortment of paper
shims (punchings) for leveling keys of one piano-
We no longer sell these shims alone. They are only available for those
buying Front Rail
and Center Rail Felt Bushings. Both
are essential to correctly restore both key drop
and leveling of the keys.
Front Rail
ShimPrtFrnt
$ 5.75
Center Rail
ShimPrtCntr $ 5.75
One Assortment of paper shims (punchings)
for leveling keys of one piano-
An
assortment of 1000 of 14 sizes of paper shims to level Front Rail punchings
SH338A
$ 165.00
An assortment of 1000 of 10 sizes of paper shims to level Center Rail
punchings SH333A
$ 82.00
Learn to level your Piano Keys from our online Repair Instruction Area.
Brass Capstan Screws- Grand piano style
squared off top- open sided holes for pointed tool-
Mounted at the far end of the key levers against the sticker. Use to remove
lost motion.
Grand or Upright-- 1-3/8 inch long Dozen
SH558B
$ 27.50
Solid
Brass Capstan Screws- Square shoulder for nut type wrench adjuster-
1-1/2 inch long- Per 100
SH559B
$ 18.50
13/16 inch long-
Per 100
SH559D
$ 18.50
Capstans-- Wood for some Oriental modern pianos and many old uprights--
Without wires, but with holes ready to receive wires-
Be sure to lubricate the tops with graphite.
It is not smart to replace only a few.
Set
of 90
SH508 $ 132.00
Key Button Stock-- Not lacquered- Bushing holes centered
in board- for .146" rail pin
Uprights--
2-1/4 inch wide-- Old Part Number 24706A
SH520A
$ 5.50 each
Strip of 9
SH520A $ 48.50
Key Button Stock--
Not lacquered- Bushing holes offset to front in board
Uprights-- 2-3/8 inch wide-- Imported basswood- for .146" rail
pinr
SH520C $ 5.80
each
Strip of 9
SH520C
$ 48.50
Silk Cord-- Used to retain hook end of hammer butt and wippen
springs in all grands,
old
uprights, late model Yamaha, Kawai uprights and Japanese pianos.
SH932 $ 4.10
/ yard
Damper flange cord-- Used to mount the damper spring in
uprights to prevent clicking.
Look at a good one to see how this cord mounts.
SH512-1/2
$ 4.85 / yard
Hammer
butt and flange reinforcers-
Use when
any flange is cracked- Fits all common flanges.
Also, will keep loose center pins from traveling.
Give it a slight inward pinch and a drop of glue before mounting.
Set of 45-
SH2502 $ 9.95
Tuning pin metal shim sleeve- Loose tuning pin is removed. Sleeve
is inserted into
tuning pin hole, and
tuning pin is inserted back into hole to hope pitch.
100 sleeves-
SH346E
$ 46.75
Dozen
$ 6.00
Key
Lever Repair Scotch Clip
Glue the broken key back
together with Elmer's Carpenter's Glue.
After it is
dry, open the jaws of a bench vice, and hold the key
lever with the clip points against the side of the lever and on either
side of the break. Have a second person slowly close the vice
jaws as you steady the key lever and clip. Stop when the
clip is well embedded. A second clip may be embedded in the
other side of the key lever, but be sure to offset it
so that the
points do not meet in the wood.
SHkeyclip
$ 2.00 ea
SHkeyclip $ 6.00 dozen

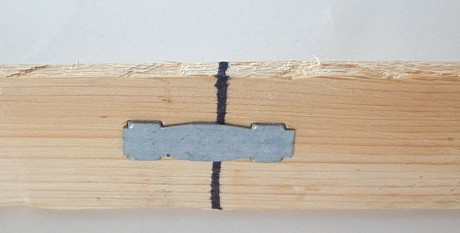

Illustration showing the Scotch Clip applied to wood.
The black line represents a break in a key lever. After gluing,
the clip is applied in a bench vise, one clip on each side of
the key lever. The vise presses the clips in without hammering.
Wood glue should be used at the same time for added strength.
The clips are VERY dangerous for children to play with.
Regulating
Screw replacement-
When the screw ring or tap breaks off
On Steinway metal
rail, drill hole and use sheet metal screw.
Exceptional life saver when
jack
regulating button busts-
Dozen
only-
SH1539 $ 24.45
Regulating Wooden Buttons with felt punchings- 3/8 inch diameter SH549 $ 49.25 per 100
Regulating Screws- 1 1/8 inch
long.
Has the ring
type top needing tool No. 16124 with handle 15152 to adjust. SH540
$ 13.45 per 100
Regulating
Felt Punchings- Now sold in sets of 100 only
Replace worn or missing jack button round felt
punchings-
Also found on
buttons in grand wippens and some damper actions.
Also found in player pianos
Remember to allow for wear of old buttons in estimating thickness
of new buttons.
Medium
Green Cloth- For uprights- 3/8" dia. by .130 inches thick
SH330A
$ 11.50
Thick Red Felt- 3/8"
dia. by .250 inches thick- For grands-
SH330D
$ 9.75
Medium Brown Cloth (grands) 5/16" dia. by .130" thick SH330J $ 11.75
Medium Brown Cloth (grands) 7/16" dia. by .130" thick SH330K $ 18.50
For large quantities of 1000-
All above sizes- Send E-Mail
Replacement
Key Lever--
We can make a replacement key lever, but it is not cheap!
We must have the key
to the left and right of the broken key to work with
as a pattern. A digital photo
of the keys showing the area of the broken key will
also help. --
SEND
MAIL
Read
my instruction for adjusting a jack
And,
how to repair a jack which has come loose.
GET
THE LEAD IN
Key Leads- Used to weight key levers. Please call and talk to Keith before ordering key leads. They may or
may not be the appropriate step to take for your piano.
These weights are round and are inserted in lateral
holes in the key levers. To determine
where
you finally want them, glue a couple octaves on top of the key levers with rubber
cement and determine what key resistance you like.
Then, once the ideal position is
determined,
drill the key lever in the center of the key laterally with a hole the size of
the
small end of the lead. Lay the key lever
on a flat surface and tap the key weight into the
hole. Use some drift of some sort to peen the small end to expand the lead
and trap it
in the hole, or glue it in.
If you have extra leads left over, they make
great fishing weights :-)
One lb. 5/8 inch diameter leads
.64 oz ea. (approx 25/lb)
SH353-0 $
16.25
One lb. 1/2 inch diameter leads
.49 oz ea. (approx 31/lb)
SH353-1
$ 16.25
One lb. 7/16 inch diameter leads
.40 oz ea. (approx 40/lb)
SH353-2
$16.25
One lb. 3/8
inch diameter leads .29 oz ea. (approx 55/lb)
SH353-3
$ 16.25

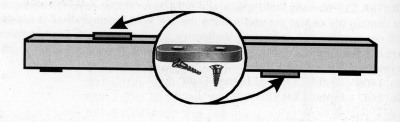

Key
weights-
"Jiffy" type leads
with two screws to attach each lead-
These
leads can be attached on top of the key lever or under it.
Some students have an upright with a very light touch, while
they
have to perform on a grand with a
heavy touch. These can be added
to the
back area of the key lever to give a heavy touch. Later, if you
wish to sell the piano, they can be removed.
It is not smart to only add weights to certain keys.
The overall key touch will become uneven and
very annoying.
By the way, these leads
make great fishing weights where you want
to
add weight way back up the line from the bait and leader after
you are all rigged up.
Set of 100-
SH353-4
$75.00
WE WILL DO THE REPAIR FOR YOU BY MAIL:
BRIDGE REPAIR PARTS
Part Description: Part Number Price
Bridge pins- Pointed at one end and round on the other- copper
plated steel
.076" dia
SH551-6 $ 18.00
per hundred
.086" dia
SH551-7
$ 18.00 per hundred
.096" dia
SH551-8
$ 18.00 per hundred
.109" dia
SH551-9
$ 20.00 per hundred
.135" dia
SH551-10
$ 21.00 per hundred
Bridge pins - Same as above but nickel plated .
SH551-6N, 551-7N, 551-8N $ 22.00 per hundred
SH551-9N
$ 23.00 per hundred
Send E-Mail for Bridge Rebuilding by our craftsman

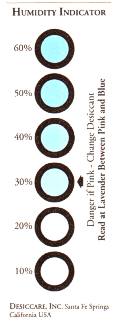

HUMIDITY INDICATOR CARDS
This neat little card is the easy way to learn what the humidity is in your piano. The card is like the cards you have seen for years which turn blue or pink according to the humidity.
The percent of relative humidity is on the card, and you will figure this by the spot which is lavender between blue and pink. This card is used in the silica gel trade in another application, so you will ignore the instruction to "change the deccicant."
If you use this card, by placing it in the piano cabinet, you will know if your heat bar is over drying the piano, and you will be able to see if the humidity gets above the level you desire.
Order Number-- Crd-01 $ 2.00 ea
PEDALS
GO TO THE PEDAL HARDWARE PAGE for Pedal Hardware:
Don't try to re-use the old pedals in a restoration. We can get you a very authentic replacement.
Upright Pedals Upright graphic and prices.
Grand
Pedals Grand
graphic and prices.
CONFUSED?
If you have honestly tried and failed to figure out what you need and cannot understand...
Don't run and hide in the barn bunky...
CALL: (800) 338-8863
If Keith is not available, or is out tuning pianos, SEND E-MAIL.
We answer all our customers' E-Mail.
ORDER BY PHONE WITH CREDIT CARD
CALL
TOLL FREE: (800) 338-8863
If there is no answer, please leave
a message- we do answer our voicemail
OR:
Go to Mail Order Form for printing:
Online
help available
