III
UPRIGHT DROP ACTION
SPINET
Gray shaded areas are felt parts.

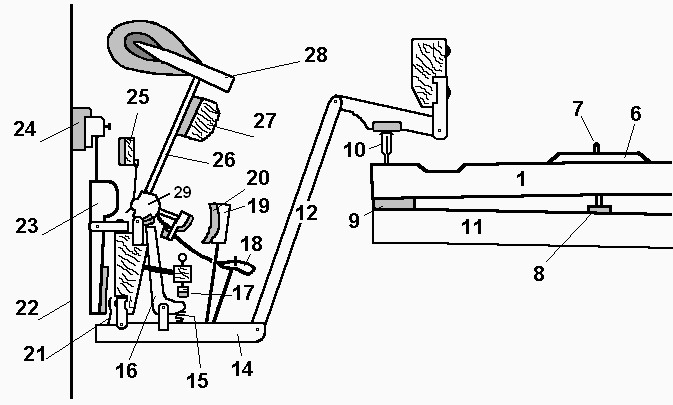

This
"drop action" design is more precise and easier to service
than the wire
and elbow arrangement below.
This action is found on Baldwins and a few other
pianos.

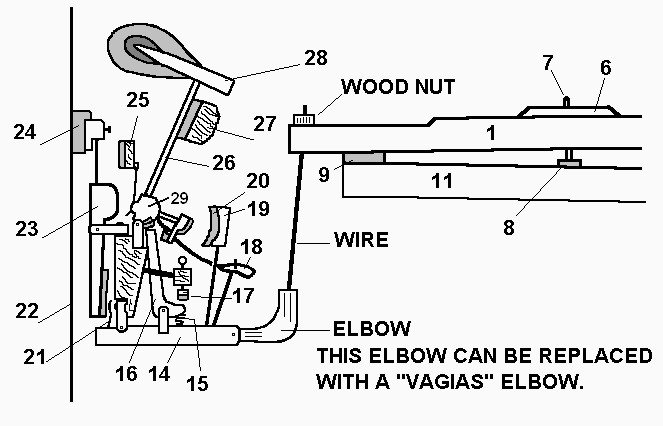

HERE
IS THE MOST COMMON "DROP ACTION"
WITH THE WIRE AND ELBOW ARRANGEMENT.
The
table below is the same as the Upright Action elsewhere,
so don't be bothered
if you notice a few numbers
which do not appear on the above diagrams.
| 1 KEY LEVER | 2 FRONT BOARD (Key slip) |
| 3 KEY TOP |
4 FRONT RAIL PIN |
| 5 FRONT RAIL FELT PUNCHING | 6 KEY BUTTON |
| 7 CENTER PIN | 8 CENTER RAIL FELT PUNCHING |
| 9 BACK KEY RAIL CLOTH | 10 CAPSTAN |
| 11 KEY BED | 12 STICKER |
| 13 STICKER RAIL WITH STABILIZER | 14 WIPPEN |
| 15 JACK SPRING | 16 JACK |
|
17 JACK ADJUSTMENT BUTTON | 18 BRIDLE STRAP AND WIRE |
| 19 BACK CHECK | 20 BACK CHECK FELT |
| 21 DAMPER OPERATING SPOON | 22 WIRE |
| 23 DAMPER LEVER | 24 DAMPER FELT |
| 25 HAMMER SPRING RAIL WITH SPRING ATTACHED | 26 HAMMER SHANK |
| 27 HAMMER REST RAIL | 28 HAMMER |
| 29 HAMMER BUTT |
