GRAND
PIANO ACTION PARTS

ORDERING INFORMATION:

MINIMUM ORDER:
Minimum Order $20

SHIPPING POLICY:
    Priority Mail shipping for most items. UPS by request.

You MUST browse the Catalog area, and try to learn what you want. We no longer search our catalog for you.

Have this information ready:
     1. Description of parts
     2. Part Numbers
     3. Prices
     4. Dimensions where needed
BEFORE you call us please.

Make sure you are in the catalog area for your kind of piano--
Such as Grand Pianos,
Full Uprights, Spinets, etc.

If you are confused, call us for assistance.

If we do not answer the phone, we are probably here-- Just leave a message- we will return your call (it may not be the same day).
:-)






This includes all of the moving parts of a grand piano from your finger to the hammers, and we link to pedal works.

If in doubt, please go to the diagram pages and double check to see if you are ordering the right part.  It is impossible to give a "Back" button to return to so many pages, so please use your browser's "Back" button

Also, I give you a link to the page which tells how to make the repair or installation of the new part.



YOU CAN NOW ORDER BY PHONE



SEARCH THE WHOLE SITE

   Search this site or the web        powered by FreeFind

Site search Web search





CLICK HERE:
To study the diagram of the
Grand Action or Grand Damper Action

CLICK HERE:
For Upright Piano Parts




GRAND PIANO ACTION PARTS




Music to rest
your mind while you shop :-)

Baptist
Convention

At Calvary
Amazing Grace
Are You Washed
Take the Name of Jesus
At The Cross
Banner of the Cross
Blessed Assurance
Burdens are Lifted
Bible Stands

Coming Home
Draw Me Nearer
Footsteps of Jesus
Higher Ground
Old Time Religion
Great is Thy Faithfulness
He Lives
I Must Tell Jesus
Jesus Paid it All
Just As I Am
Look and Live
Lord I'm Coming Home
Marching to Zion
There is A Fountain
Near The Cross
Hold the Fort
Nothing But the Blood
I am Resolved
Kneel at The Cross
Saved
Rock of Ages
Oh, How I Love Jesus
Shall We Gather at River?
Praise Him
Redeemed
In The Garden
Wonderful Words
Beulah Land
Sound the Battle Cry
Stand Up for Jesus
Sunlight
Once For All
Sweet Hour of Prayer
Power in the Blood
Send the Light
Rescue the Perishing
That Will Be Glory
The Comforter has Come
The Way of the Cross
More About Jesus
To God Be The Glory
Trust and Obey
When I see the Blood
Gospel Medley

Many strange parts of many variations are found in grand piano actions.
We need to be very sure we are getting you the exactly correct part.

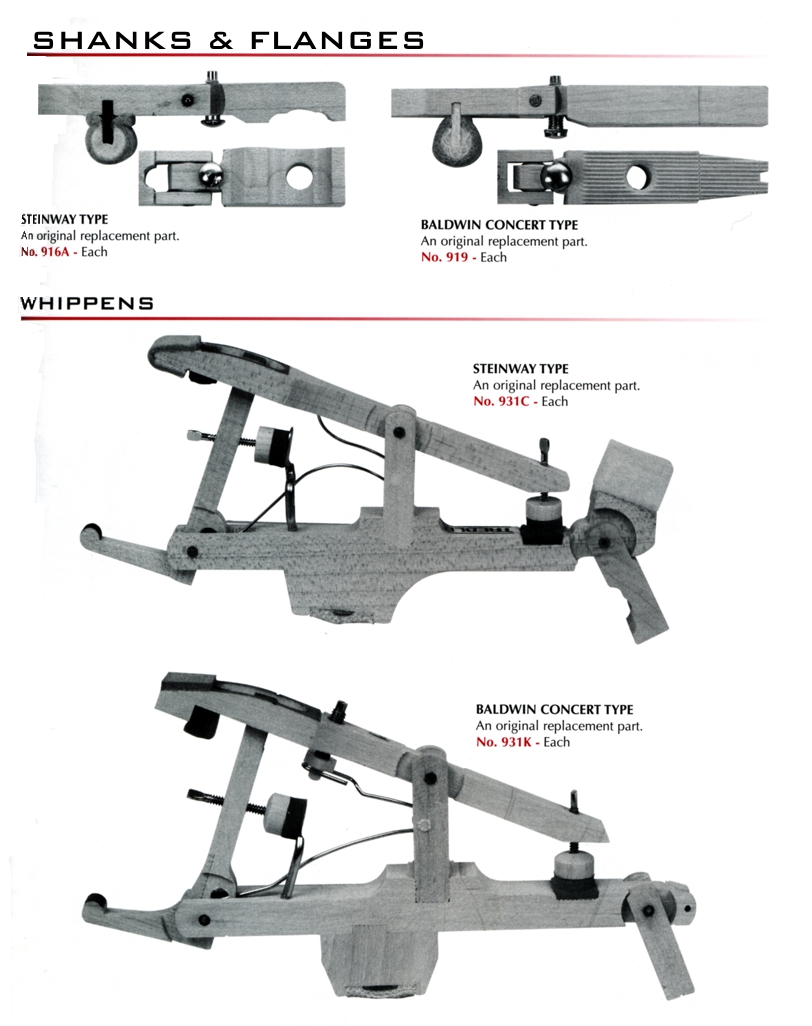

GRAND HAMMER SHANKS AND FLANGES

             There are so many variations that I am giviing you
             a Graphic of Grand Hammer Shanks and Butts to order from.
             Read my instructions on alligning grand hammers




WHIPPENS





NOTE: Steinway Hamburg Wippen without adjustable assist spring also available. Part #SH931HAMJ--same price as
                   as SH931HSJ. Order appropriate heel (1029 or 1029A) as well.



These shanks and flanges go with the Steinway and Baldwin wippens below



NOTICE: We now are carrying Wessel Nickel & Gross Carbon Fiber wippens and Shanks & flanges. We highly recommend these parts over the wood replacements. They are lower friction, more durable, not affected by moisture. The components are custom assembled to match your part.                                                                                     Price for set of wippens: $ 2089

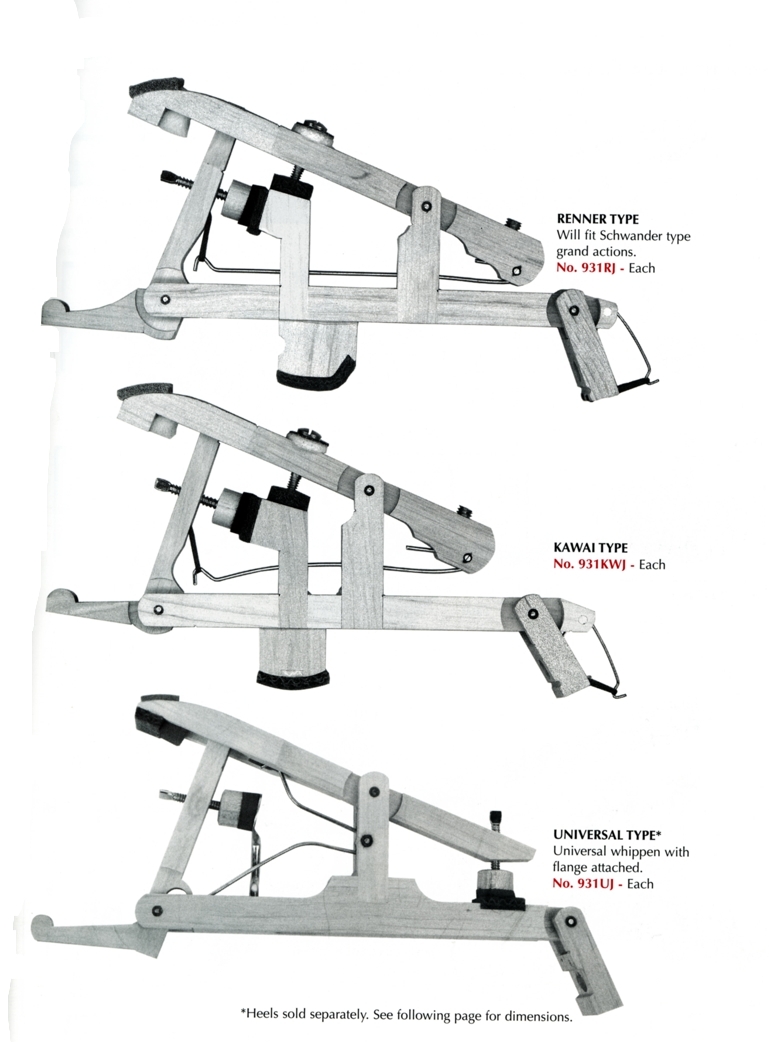

             Description                                                                                     Part Number           Price

Renner Wippen                                                                                            SH931RJ                  $ 27.25

        Dozen                                                                                                                         $ 325.00
                Set of 90                                                                                                                     $ 1985.00

Kawai                                                                                                           SH931KWJ               $ 27.25
                Dozen                                                                                                                         $ 325.00
                Set of 90                                                                                                                     $ 1985.00

Universal Type (Specify long or short heel- This wippen fits many pianos)  SH931UJ       $ 24.25
                Dozen
                                                                                                                         $ 275.00
                Set of 90                                                                                                                     $ 1885.00

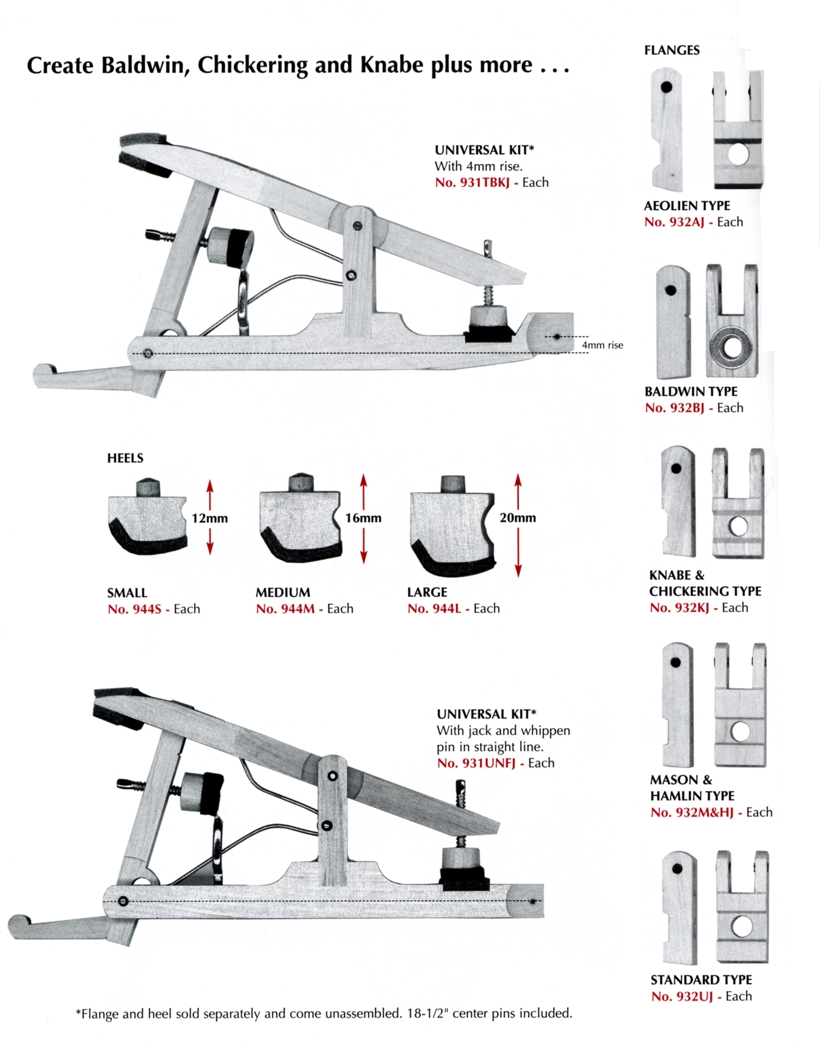

UNIVERSAL WIPPEN KITS

        Be very careful in choosing the base wippen- Measure and double check

        Mix and match- Choose the right wippen, stump, and flange

        Give us all of the THREE order numbers that apply

        Aeolian American, Knabe, Steck, Chickering 305,

        Fischer, Baldwin, Mason Hamlin, Standard          SH931UNFJ  and  SH931TBKJ       $  26.75 complete

        Dozen                                                                                                                        $ 295.00

        Set of 90                                                                                                                    $ 2025.00

Steinway Type                                                                                             SH931CJ                  $ 25.50
                Dozen                                                                                                                         $
285.00

        Set of 90                                                                                                                     $ 1975.00

Mason and Hamlin Type                                                                              SH931M&HJ             $ 25.95
                Dozen                                                                                                                         $ 290.00
                Set of 90                                                                                                                     $ 1995.00

Yamaha and Young Chang                                                                        SH931YJ                    $ 25.50
                Dozen                                                                                                                        $ 285.00

        Set of 90                                                                                                                   $ 1975.00

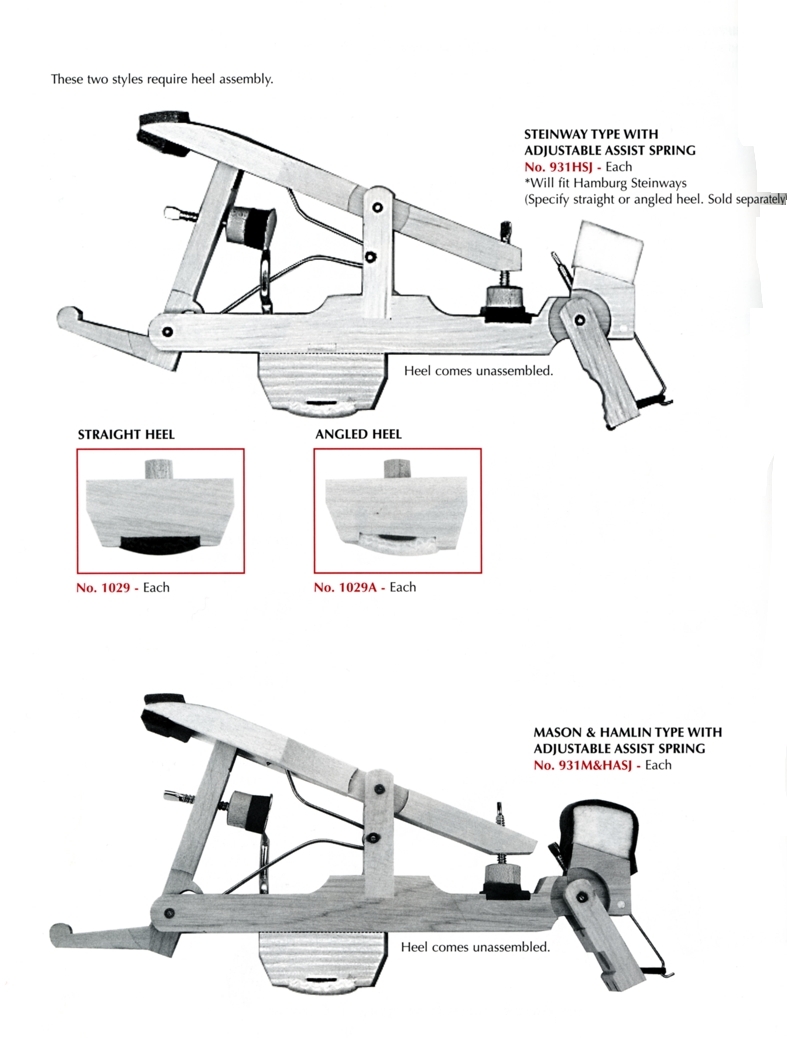

Steinway Type with Adjustable Assist Spring
                Be sure to specify the correct stump Part Number
                One wippen
                                 SH931HSJ                    $ 26.75
                Dozen                                                                                                                       $ 295.00
                Set of 90                                                                                                                  $ 2025.00

Mason Hamlin with Adjustable Assist Spring
                Be sure to specify the correct stump Part Number
                One wippen                                                                    SH931M&HASJ                    $ 23.25
                Dozen                                                                                                                       $ 265.00
                Set of 90                                                                                                                  $ 1795.00

Steinway- Pre-1984  Original Replacement Part                                            SH931C                 $ 36.00

        Dozen                                                                                                                        $ 400.00

        Set of 90                                                                                                                   $ 2575.00

        Steinway Original Replacement Shank and Flange
                    SH916A                   $ 24.00

        Dozen                                                                                                                         $ 275.00
                Set of 90                                                                                                                     $ 1880.00



        Baldwin Original Replacement Shank and Flange
                      SH919                   $ 12.00

        Dozen                                                                                                                         $ 135.00
                Set of 90                                                                                                                     $ 995.00

Chickering brass flanges with clip (Not shown)
                For Chickering Grand Wippens
                                                   SH590                     $ 6.25 each









UNDER LEVERS-- For Grand Damper actions

See Diagram of Grand Damper Action

             Description                                                                                     Part Number           Price

Grand Damper Under Levers with regular flange
            This is a kit. It comes with a 48" mounting rail which you
            will very likely have to install in place of the original rail.
            Full instructions tell you how to do this. The under levers
            come with sostenuto lifters attached. There is no choice
            of under levers without sostenuto lifters.
                      Set of 72
                                                                                PT-TGDK            $ 995.00

            We have a few individual under levers left first come first serve                                   $ 20.00 each

Grand Underlever Action Kit
            Fits Steinway short arm.                                             SH1028            $ 875.00



JACK !!

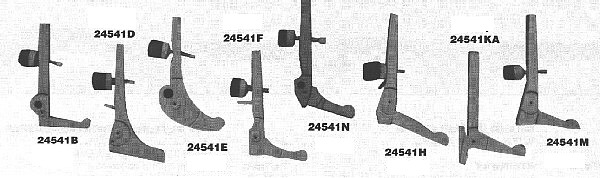

Grand Jacks--
Match yours to the
graphic.
Price is on the
graphic.









Description of above Jacks:

        Graphic Number                                                                                              Part No. for Ordering             Price

            24541B- Steinway                                                                                                Not Available
            24541D- Aeolian-American- Knabe- Fischer- some Mason&Hamlin              SH930D                       Not available
            24541E- Baldwin Regular                                                                                    SH930E                         Not available


            24541H- Chickering-- With Long Arm                                                                SH930HL                     Not available

                        Chickering-- With Short Arm                                                                  SH930H                          $ 8.50
            24541KA- Kranich & Bach Short Arm--
                         Center pin hole to end of arm- 1 inch                                                     SH930K                       Not available
            24541KB- Kranich & Bach Long Arm--
                         Center pin hole to end of arm- 1-3/16 inch                                             SH930KL                     $ 8.50
            24541M- Brambach                                                                                              SH930M                        $ 8.50
            24541N- Mason & Hamlin                                                                                   SH930M&H                  Not available

            FULL SET OF ANY OF THE ABOVE JACKS                                                                                      $625.00


REGULATING PARTS

These attach to the underside of the grand shank and are activated by the jack.
Do now try to recover the knuckles with buck skin. Be sure to remove the tongue from
the shank and seat the new knuckle well into the hole.

Back Checks, Knuckles, and Regulating Screws for Grands--  Match yours to the ones in the graphic below.
            Do you want to learn to adjust grand actions.  Find a great book for this skill.

Regulating "Lift Off" Screws-
        For grand shanks- 1/2" long under head x .124" round flat top end
                        Old Part number in graphic- 245305A                                         SH588
$ 11.00 / Doz.
Tokiwa Grand "Let Off" buttons- Set of 90
        Wood Button with holes on wire- felt punchings included but not attached        SH1024               $ 150.00 per set or $24/doz.
Regulating Screws-
Spade head- 3/4" long x .093
                        Old Part number in graphic- 245305B                                         SH544                 $ 12.00 / Doz. or $80/set

Plate Pins and Bridge Pins

Center Pins

Regulating Screw replacement-
When the screw ring or tap breaks off
On Steinway metal rail, drill hole and use sheet metal screw.

Exceptional life saver when jack
regulating button busts-
         Dozen only-                                                                       SH1539             $ 24.45



Regulating Wooden Buttons with felt punchings- 3/8 inch diameter                          SH549             $ 49.25 per 100

Regulating Screws-  1 1/8 inch long.
                Has the ring type top needing tool No. 16124 with handle 15152 to adjust.     SH540             $ 13.45 per 100

Regulating Felt Punchings-  Now sold in sets of 100 only
              Replace worn or missing jack button round felt punchings-
              Also found on buttons in grand wippens and some damper actions.
              Also found in player pianos
              Remember to allow for wear of old buttons in estimating thickness of new buttons.
              Medium Green Cloth-
 For uprights-  3/8" dia. by .130 inches thick                      SH330A              $ 11.50

Thick Red Felt-  3/8" dia. by .250 inches thick-  For grands-                                  SH330D              $ 13.50
              Medium Brown cloth (grands) 5/16" dia. by .130" thick                                          SH330J              $ 11.75
              Medium Brown cloth (grands) 7/16" dia. by .130" thick                                          SH330K              $ 18.50
              For large quantities of 1000- All above sizes-   Send E-Mail

Replacement Key Lever--
              We now have a craftsman who can make a new key lever of kiln dried wood.
              We must have the key to the left and right of the broken key for him to work with
              as a pattern. A digital photo of the keys showing the area of the broken key will
              also help him. We will have to get a quote-- SEND MAIL



Knuckles By Abel- Mount under hammer shank-  Full set for one piano-                  SH921E                  $260.00
Knuckles By Tokiwa- Mount under hammer shank-  Full set for one piano-              SH921EJ                $285.00

Hammer Flange Washers-- For under the screw on the flange.
              Distributes the tension of the flange screw without breaking the flange
              Per 100                                                                                                           SH920                      $ 7.50

HAMMER SHANK REPAIRS
(Mostly for very old or European pianos with round shanks)

Hammer shank repair sleeves-
              Slit Nickel plated-  2 inch long- One size fits all-  Dozen-                                  SH3506   $ 5.00 per doz.
              Same as above-  100-                                                                                          SH3506   $ 40.00 per 100

Hammer shank repair sleeves-
              Not slit-  Brass tube-  7/32"- Dozen-  I only use this kind-  Full Upright size         SH3505            $ 12.00 per doz.
                                                                                                                                             SH3505           $ 95.00 per 100

              Not slit-  Brass tube-  3/16"- Dozen-  (Limited supply on hand)                           Inquire              $ 8.55
              Instructions for using brass sleeves

Hammer Shank Cutter and Hammer Work Tools

Hammer felt hardener
              Read about voicing hammers in the Repair Section

Drills for hammers and shanks



Read my instructions on panic hammer repair, and hammer shank repair.




GRAND BACK CHECKS

See graphic above

Back Checks   Made by Tokiwa-- with wire                 SH924AJ        $ 315.00 / set of 90
Back Checks
Made by Tokiwa-- without wire            SH923AJ        $ 295.00 / set of 90
Back Checks
Tokiwa Steinway Style (with wires)       SH924CJ        $ 375.00 / set of 90
Back Checks   Tokiwa Steinway Style (without wires)  SH923CJ        $ 365.00 / set of 90
Back Checks   Steinway US style with wires                 SH924C          $ 685.00 / set of 90

        If in doubt, order either 924AJ or 923AJ (Standard Domestic Models)


OTHER GRAND ACTION PARTS

Steinway sustaining monkey--                                                                                   SH929            $ 41.75

Inquire by E-Mail for a set


Grand Capstan Screws-
  Dozen- 1 3/8"    Brass polished round heads with holes       SH558B          $ 27.50

Capstans-- Wood for some Oriental modern pianos and many old uprights--
        Without wires, but with holes ready to receive wires-
        Be sure to lubricate the tops with graphite. It is not smart to replace only a few.
        Set of 90                                                                                                         SH508         $   132.00

Flanges- All purpose- Fits nearly all full sized upright
     pianos for hammers, wippens, and other applications
     NOT for dampers. Used in grands also.

Aeolian ONLY
          Dozen-                                                                                                                SH511B          $ 39.00


Standard Flange

          Dozen-                                                                                                                SH511CJ          $ 24.00

Set of 90-                                                                                                            SH511CJ        $ 167.00


Flange Repair- Acts of Desperation- Brass- Only found here !
This hinge is very small. It can be glued to a damaged
hammer butt and the hammer butt rail with epoxy, or it
can be drilled and anchored with a wood screw or even
      a small nut and bolt. You may have to carve the hammer butt so that the
      hinge flap lies flat. It can also be used with broken brass hammer butts and
      brass rails. One flap could even be soldered to the broken hardware of the
      rail. The pin can be removed and is stainless steel. Lubricate the pin and
      knuckle of the hinge so it moves freely.                                                             SM7000      $    12.75 each
                      Per Dozen                                                                                                                     $  124.00



Agraffes (device with one, two, or three holes which wire passes through)

Drills for hammers and shanks




Key Felt Bushing Cauls (not pictured)
        This is the favorite in production shops- Durable and accurate
        HDPE resists glue. Available in four sizes:
        .147"       One Dozen                                                               SP147          $  25.00
        .162"       One Dozen                                                               SP162          $  25.00
        .138"       One Dozen                                                                SP138          $  25.00
        .125"       One Dozen                                                                SP125          $ 25.00



Key Lever Front Rail Oval Pins- Used on all uprights and grands.
        1 7/16 inch by .146 inch- Nickel plated- Per set of 100                                             SH352             $ 59.00

Key Lever Balance Rail Pins-  Used on all uprights and grands.
        2-1/8 inches by .146 inch- Nickel plated-  Per set of 100                                              SH351A          $ 65.00
        2-5/8 inches by .146 inch- Nickel plated-  Per set of 100                                               SH351B           $ 77.00

2-1/8 inches by .160 inch- Nickel plated-  Per set of 100                                              SH351D           $ 97.00
        2-5/8 inches by .160 inch- Nickel plated-  Per set of 100                                              SH351E           $ 130.00

One Assortment of paper shims (punchings) for leveling keys of one piano-
        We no longer sell these shims alone. They are only available for those buying Front Rail
        and Center Rail Felt Bushings. Both are essential to correctly restore both key drop
        and leveling of the keys.
        Front Rail                                                                                                                   ShimPrtFrnt           $ 5.75
        Center Rail                                                                                                                ShimPrtCntr           $ 5.75

One Assortment of paper shims (punchings) for leveling keys -

        An assortment of 1000 of 14 sizes of paper shims to level Front Rail punchings                 SH338A          $ 165.00
        An assortment of 1000 of 10 sizes of paper shims to level Center Rail punchings               SH333A          $ 82.00

        Learn to level your Piano Keys from our online Repair Instruction Area./

Tuning Pin Wooden Bushings-- SEE TUNING PIN PAGE



KEITH WILL DO THE REPAIR FOR YOU BY MAIL:

CLICK HERE TO LEARN MORE


BRIDGE REPAIR PARTS

Part Description:                                                                                                        Part Number            Price

Bridge pins-   Pointed at one end and round on the other- copper plated steel
                                  #6           .076 dia       24313A in graphic                                        SH551-6    $ 18.00 per 100
                                  #7           .086 dia       24313B in graphic                                        SH551-7    $ 18.00 per 100
                                  #8           .096 dia       24313C in graphic                                        SH551-8    $ 18.00 per 100
                                  #9           .109 dia       24313D in graphic                                        SH551-9    $ 22.00 per 100



Tuning Pin Wooden Bushings-- SEE TUNING PIN PAGE

Send E-Mail for Bridge Rebuilding by our craftsman



SQUARE GRAND PIANO PARTS:

We can offer consultation, but basically square grand parts require custom creation, and at present we don't have the time to do it. We can supply hammers, but you will have to modify them to fit.

Send E-Mail


GRAND PIANO HARDWARE--
Anything you cannot find on the present page should be on the Hardware Page.

GRAND DAMPER WOODEN HEADS

UPRIGHT PIANO ACTION PARTS-- Full Uprights, Spinets, and Consoles

GENERAL PIANO ACTION PARTS-- These parts can apply to all pianos

FELT PARTS FOR GRANDS AND UPRIGHTS

CENTER PINS AND TOOLS
This covers the pins used in all flanges and hinged points in all actions.

PEDALS

GO TO THE PEDAL HARDWARE PAGE for Hardware:

Don't try to re-use the old pedals in a restoration.  We can get you a very authentic replacement.

GRAND PEDALS-  Again, you may order from a graphic to be sure of yourself.

TUNING PINS, PIN TREATMENTS, AND PIN BLOCKS

LUBRICANTS AND LIQUID TREATMENTS

GRAND HAMMER SHANKS AND BUTTS

PLAYER PIANOS AND REED / PUMP ORGAN SUPPLIES
       GO TO THE PLAYER PIANO PARTS PAGE:


Also, we suggest you purchase Mr. Reblitz' book on Player Piano Repair on the Book Page.

BUY THE TOOLS TO MAKE THE REPAIRS




ORDER BY PHONE WITH CREDIT CARD
Call Toll Free at: 1 (800) 338-8863
OR:
Go to Mail Order Form for printing:

Online help available

BACK TO PIANO TITLE PAGE
