PIANO ACTION PARTS
FOR SPINETS AND SMALLER PIANOS
Check
to see if you have a Full Sized Upright
| ORDERING INFORMATION: MINIMUM
ORDER: SHIPPING
POLICY: You MUST browse the Catalog area, and try to learn what you want. We no longer search our catalog for you. Have
this information ready: Make
sure you are in the catalog area for your kind of piano-- If you are confused, call us for assistance. If we do not answer the phone, we are probably here-- Just leave a message- we will
return your call (it may not be the same day). |
This includes all of the moving parts
from your finger to the
hammers.
If
in doubt, please go to the diagram pages and double
check to
see if you are ordering the right part. It is impossible to
give a "Back"
button to return to so many pages, so please use your browser's
"Back" button
Also,
I often give you a link to the page which tells how to make the
repair or
installation of the new part.
SEARCH THE WHOLE SITE

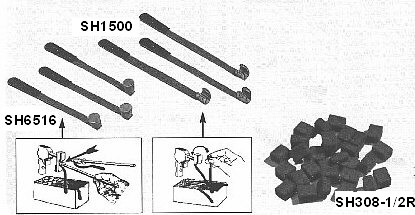

BRIDLE STRAPS FOR ALL UPRIGHTS
If your upright piano has the hole below the catcher on the hammer butt stump,
you need the cork ended straps. If you have no extension below the catcher,
and no hole that is about 1/4 inch diameter, you need the metal clip on strap.
The original strap was anchored in the hammer butt in the hole where the catcher
shank was attached to the hammer butt. Simply cut the excess off that is left of
the old strap. You are not going to try to insert the new strap into the hammer
butt hope-- cannot be done.
Bridle Straps- (Metal clip-on type- 90) SH1500 $ 32.50
Bridle Straps- (Cork end for hole receiving type- 90) SH6516 $ 27.50
Inserter
for cork ended bridle straps- We no longer provide the simple tool
Make
one by removing the top off of a carpet tack and embed the blunt end in one
end of a 1/4 inch wood dowel. Push the point into the back end of the cork and
follow the instructions at:
Read my instructions
for installing Bridle Straps
Hammer
Butt Felt Squares-
Mount on the lower area of the hammer butt to cushion the top
of the jack. This solves the clicking
in an action. Set of 100-
Medium-- Red-- .164
inches thick--
SH308-1/2R
$ 7.50
Regulating Screws-
Spade head- 3/4" long x .093
Old Part number in graphic-
245305B
SH544
$ 15.00 for 100 or $ 5 Doz.
General Parts
Spinet parts are usually less massive
than full uprights. You cannot get by with upright parts.
Some Full
Upright parts in the lower section of the page are used in spinets.
Part Description: Part Number Price
You must tell
us if the wippen needs
a spoon and if it angles to the left or right
as you look into the piano from the front.
Wippen-
Small direct blow-

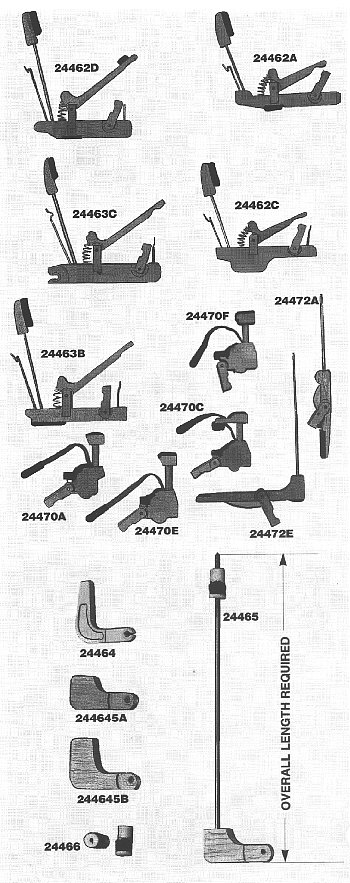

24462A in graphic
New part number- wood SH3762J
$ 13.25 ea
Tokiwa laser
cut
Full sets (45 rt spoon, 45 left)
$ 875.00
Wippen- 24462C in graphic
Coact drop action-
With
elbow to sticker- SH3768
$ 25 ea
This wippen is no
longer made. Send a good wippen with
sticker attached,
and I will try to build one for you from other
parts.
SEND MAIL first though, and a digital
photo of a good
part outside the piano.
Wippen-
Pratt Read U-10 type- 24462D
call for availability
Wippen-
Baldwin Hamilton-
24463B in
the graphic SH3712
call for availability
Wippen- With hook drop
wire
24463C in graphic
Baldwin
Acrosonic- SH3713
$15.00 each
Hook Drop Wires for
Baldwin Spinets and Consoles
7-1/2 inches
SH3779
Call for availability
4-1/2 inches
SH3780 call for availability
Hammer butt-
24470A in graphic SH3772
$ 9.25 each
Hammer butt-
Baldwin Hamilton
and Acrosonic-
24470C
call for availability
Drop Wire with wood Elbow and round wooden nut- 7 inches 24465-7 $ 12.00 ea.
Drop Wire with Nut and wooden Elbow and Neoprene nut- 9 inches 24465-9 call for availability
Damp Lever- The wood section of the
lever is 3 inches long
Fits nearly all spinets
and consoles-
Old Part Number- 24472A
Wood flange--
Tokiwa laser cut
SH3786J $6.50 ea
Full set of 70----with wood flange
SH3786J $ 350.00
SCHWANDER
PARTS
Fits Kimballs and some other brands using Schwander actions.
For Kimball 36", 38", 40", 41", and 42"
tall pianos
with wood hammer butt rail
Each
SH3720A
$ 6.15
Set of 90
SH3720A $ 440.00
Schwander wippens, jacks, key buttons, drop
wires, damper levers, and damper flanges available.
SEND
MAIL for a quote.
Flanges-
All purpose- Fits nearly all spinet and some
console
pianos for hammers, wippens, and other
applications--
NOT for dampers.
Dozen- Old
Part Number- Ignore it please
SH511CJ
$ 24.00
Set of 90- Old Part Number- Ignore it please
SH511CJ $ 165.00
Spinet
(some Console) Damper Flange with attached spring
Full size upright damper flanges will not work.
SH3717J $ 4.50 each or $ 40.75/dozen
Full set of 70
SH3717J $ 225.00
Vagias
Elbows-- For some drop action pianos
These
elbows are used to replace broken and crumbling plastic elbows
in some spinet pianos.
Old Part Number 24464
For drop action rods- Easy snap-on assembly- Replaces
50s crumbling plastic-
Set of 90-
SH3719 $ 50.55
Read my instructions for installation
please!
Lifter (Drop) wires
only for drop actions-- For when wires are lost-- Threaded at both ends
You will need to buy the buttons for the top.
Limited supply
$ 10.00 ea.
Lifter (Drop) wires for Baldwin spinets-- With
nut and rubber grommet
7-1/2 inch long
SH3779 $
5.00 each
By the dozen or full set--
SEND MAIL
Hard Plastic finger nut for top of Baldwin drop wires- Set of 100-
SH3783
$ 85.00
Lifter Wire Wooden Buttons- Dozen- 24466 in the graphic
above
SH3781J
$ 5.75
Lifter
or Wooden (or plastic) Wire Buttons- Set of 90-
Mount on top of lifter wire, inserts in recess in key lever wood
SH3781J
$ 38.00

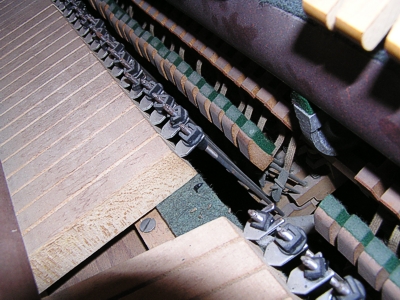

Rubber
Lifter Wire Neopreme nuts with fibre nut embedded
Mounts in a metal tab with "U" yoke- Square
top.- Set of 100- =======>
SH3785
$ 71.00
Rubber Lifter Wire Neopreme donut
grommets for metal tab style (not shown)
Similar to SH3785, but the rubber grommet mounts in the tab,
but a plastic
nut is used above the rubber grommet
on top of the wire to adjust.
Used on Baldwins
along with the plastic nut below, and on other brand spinets.
Mount on top of lifter wire in metal tongue- Set of 100-
SH3784
$ 21.00
Weaver
spinet metal rocker rod-
(If you broke one, you will know what it
is- not shown)- SH3782
$ 6.00
Back Checks-- We can no longer get the shorter spinet version of
back checks.
Also, the wires below are the only length we can get at this
time.

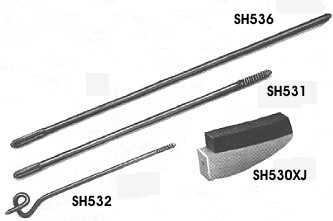

Back Checks with felt shoe-
Without
wires-
Dozen
SH530XJ
$ 21.00
Full set of 90-
SH530XJ $ 147.50
Back
Check wires- 3-5/8 inches length - 100
SH531
$ 21.00
Damper Wires- 3-1/2 inches length
- 100
SH536
$ 83.00
Bridle wires- - 100
SH532
$ 25.00
Learn
how to repair and adjust Backchecks
Damper
repair springs- For spinets
Tucks under damper
flange screw-
Set of 100
SH1538B
$ 91.50 or $12/dozen
Read my
damper repair section
Jack springs- Set of 100-
3/4 inch for spinets and some consoles only
SH3776
$ 16.75
Jack Spring Reamer for removing
glue when replacing jack springs--
I find this tool unmatched
by improvising if a whole set of jack
springs are being replaced-
SH127 $ 24.45
Wood
Dowel Capstan-
Brass Capstans
Key
Button Stock-
Key Button Stock-
SPINETS
AND SOME CONSOLES-- SHANK REPAIR
Part Description: Part Number Price
Hammer shanks (upright only)- Hard Maple- Dozens only-
Please measure the diameter of
your piano's shanks to be sure you order correctly.
7/32" x 5 1/4" (usually only found on full sized uprights--
Some excetions) SH504
$ 7.00 per doz.
3/16" x 4 1/4" (usually only found on
spinets and many consoles)
SH3716
$ 5.00 per doz.
Same as above- Set of 100-
$ 24.00 (#3716)
Hammer shank repair sleeves-
Slit Nickel plated- 2 inch long- One
size fits all- Dozen-
SH3506
$ 5.00
Same as above- 100-
$ 38.00
Hammer shank repair sleeves-
Not slit- Brass tube- 7/32"- Dozen-
I only use this kind- Full Upright size
SH3505 $ 12.00
100
$ 90.00
Not
slit- Brass tube- 3/16"- Dozen- (Limited supply on hand)
Inquire $ 8.55
Instructions
for using brass sleeves
Read my instructions on:
Panic hammer repair, and Hammer shank repair
See Regulating and Repair Tools
SPINETS AND SOME CONSOLES-- JACKS
This jack for spinets and many consoles
is about 2 inches high. Measure ONLY the jack, not including the jack flange.
If yours is 3 inches high, go to the full sized upright section down the
page for your jack.
See illustration in
Full Upright section below to see what you may need.
See the Diagram
of a drop action of small piano action See part 16 in diagram.
Part Description: Part Number Price
Jacks for spinets and consoles with
shorter jacks- With flanges-
Dozen
SH3790J $ 47.00
Full set of 90
SH3790J
$ 295.00
Jack Springs-- See above
Hammer
return spring replacement-
Mounted on a wooden
rail behind the hammer
Screws into damper
rest bar- limited availability.
SH1519B
NA
Hammer
Butt Return springs (100 springs) See in top of graphic down the page.
Mounted on a wooden rail behind the hammer
(Like original factory part, but hard work- Spinet type)
SH3777 $
18.25
Hammer Butt Return Springs-- Flange
mounted (no illustration)
These cute rascals are mounted
to the hammer butt hinge point and tuck
up to catch a piece of
string, usually silk, which then helps the hammer
more quickly
back into position. Found on Kimballs and other pianos
They may
fit some Asian pianos, but no promises. Set of 100
SH3736 $
21.00
Regulating
Buttons for all types of pianos
UPRIGHT HAMMER SHANK REPAIR
Part Description: Part Number Price
Learn how to repair a broken hammer. Second location
Hammer head extractor-- Absolutely essential
for replacing hammers-
Full
Size Uprights- You must order this tool to take the old hammers off.
SH130A $ 46.75
Hammer
head extractor-- Absolutely essential for replacing hammers-
Spinets / Consoles- You must order
this tool to take the old hammers off. SH130AS
$ 44.50
Clamp- Used with Hammer head
extractor
This
clamp is used where a shank is broken. It is attached so that the
hammer can be pulled with the Extractor.
SH130B
$ 32.50
Hammer shanks (upright
only)- Hard Maple-
Please measure the diameter of your piano's shanks
to be sure you order correctly.
7/32" x 5 1/4" (usually only found on full sized uprights-- Some excetions)
SH504 $ 52.00
per 100
3/16"
x 4 1/4" (usually only found on spinets and many consoles)
SH3716 $
24.00 per 100
Hammer shank repair sleeves-
Slit Nickel plated- 2 inch
long- One size fits all- Dozen-
SH3506
$ 5.00 per doz.
Same as above- 100-
SH3506 $ 38.00
per 100
Hammer shank repair sleeves-
Not slit- Brass tube- 7/32"-
Dozen- I only use this kind- Full Upright size
SH3505 $ 12.00
per doz.
100 of either size
SH3505 $
90.00 per 100
Not
slit- Brass tube- 3/16"- Dozen- (Limited supply on hand)
Inquire $ 8.55
Instructions
for using brass sleeves
Hammer shank Cutting Tool- Nips the shank with a clean cut-- Plier type tool- SH237 $ 12.50
Hammer shank reducer-- Use to shave hammer shank if it is
too large. Does smooth job- SH75
$ 26.25
Universal
handle needed- SH26
SH26
$ 38.00
Read about voicing hammers in the Repair Section
Hammer felt hardener- Hammers are often too soft when new. ORDER HERE
Drills for hammers and shanks- See
Regulating and Repair Tools
Read my instructions on panic hammer repair, and hammer shank repair.
KEITH WILL DO THE REPAIR FOR YOU BY MAIL:
BRIDGE REPAIR PARTS-- All Uprights
Part Description: Part Number Price
Bridge pins- Pointed at one end and round on the other- copper
plated steel
#6
.076 dia
SH551-6 $ 18 per
100
#7
.086 dia
SH551-7
$ 18 per 100
#8 .096 dia
SH551-8
$ 18 per 100
#9 .109 dia
SH551-9
$ 22 per 100
Plate Pins- Lower end of the string anchor- 5/8 ths inch by .157 dia. 224312 ian graphic SH542 $ 12.50 per 100
Tuning Pin Wooden Bushings-- SEE TUNING PIN PAGE
Send E-Mail for Bridge Rebuilding by our craftsman
GENERAL PIANO HARDWARE
GRAND
PIANO
ACTION PARTS
GENERAL ACTION PARTS
FELT PARTS FOR GRANDS AND UPRIGHTS
CENTER
PINS
AND TOOLS
This covers the pins used in all flanges and hinged
points in all actions.
PEDALS
GO TO THE PEDAL HARDWARE PAGE for Pedal Hardware:
Don't try to re-use the old pedals in a restoration. We can get you a very authentic replacement.
Upright Pedals Upright graphic and prices.
Grand Pedals Grand graphic and prices.
CLICK HERE TO GO TO: TUNING PINS, BRIDGES, AND PIN BLOCKS
LUBRICANTS AND LIQUID TREATMENTS- CLICK HERE
PLAYER
PIANOS AND REED / PUMP ORGAN SUPPLIES
GO TO THE
PLAYER
PIANO PARTS PAGE:
Also, we suggest you purchase Mr. Riblitz' book on Player Piano Repair on the Book Page.
BUY THE TOOLS TO MAKE THE REPAIRS
ORDER BY PHONE WITH CREDIT CARD
Call Toll Free at: 1 (800) 338-8863
OR:
Go
to Mail Order Form for printing:
Online
help available
