PIN AND FLANGE SIZING AND LOOSENING TOOLS
Vise-- Takes pins and tools from 0" to .118" in diameter
4 inches long-- Ideal for holding broach tools and center
pins-- This is an
improvement over our
old model-- Enhances control inserting pins into
Nickel plated with steel jaws. Double
Replaces and improves on Old Part Number

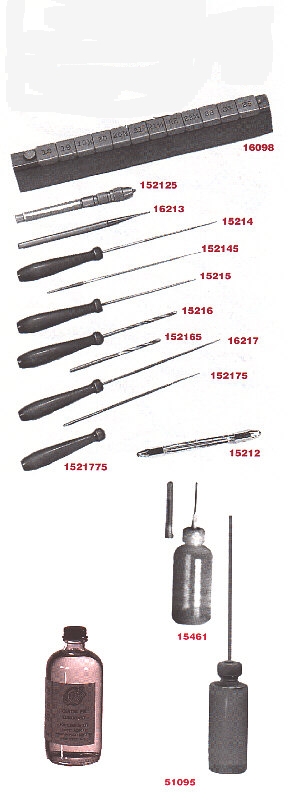

15212 above graphic
SH149 $ 12.35
Vise-- One set of friction jaws--
from 0" to .052" diameter pins and tools
Number- SH152 $ 13.30 s
Repinning Tool-- Hand Press-- Not shown in graphics
This tool is hand held. The flange is placed against the
bottom, and the
grip is squeezed
The pin is driven out of the flange and can be removed completely.
The new pin is driven in by the other end
of the tool.
Sturdy aluminum construction.
SH5501 $ 47.00
Replacement needles-- Each
a Center Pin, smallest size

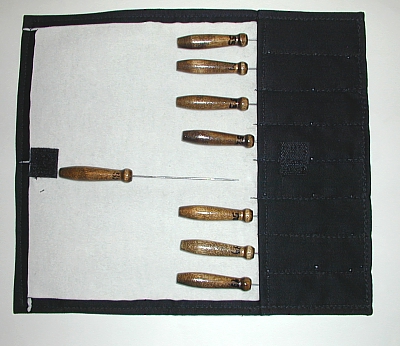

Kit-- Covers the most common sizes--
Eight broaches from .048 to .055-- in wood handles
Instruction sheet included -- Carrying case included
Developed by P.T.G. member, Don Manino.
Broach has wire point tapering up to size needed
Near handle is a 1/2 inch section for roughed
for reaming the bushing felt. Taper burnishes.
These are needed to size new flange bushings,
adjustments made on site-- See
graphic at left.
SH220 $ 51.50
Pin Punch-- 3-1/4 inches long- Old number 16213
Reamer-- Cornered-- Handle
SH 157 needed-- For enlarging hole in flanges and other needs--
Can be used to remove threads in brass flanges so they can be used
in a Kimball
Without handle-- 3-3/4
inches lone tool part-- 15214 in the above graphic
SH153 $ 5.10
Handle SH 157 needed to use this tool-- Part 15215 in the graphic
Burnish the felt bushing hole- Tapered from .046 to
.066 inches- 4 inches long
SH155 $ 6.95
Drill-- 7/64 inch-- To drill flange holes--
Handles SH149 or SH152 needed
Old Part Number in above graphic 152165
Rat Tail File-- Handles
SH149 or SH152 needed to use this tool
flange bushing holes with control- 4-3/8 inches long- 15217 in graphic
Wood handle-- 2 3/4
inches long-- Use with flange tools above- 1521775 in graphic

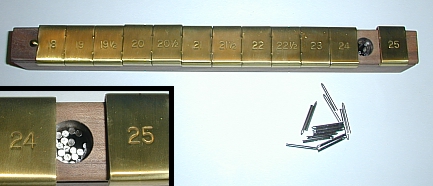

Center Pin wood case with marked brass covers-- See graphic above
Holds 12 common sizes and controls removing pins--
Old number above16098
SH165 $ 42.25
Case loaded with 12 sizes of center
SH165A $ 105.00
Hypodermic type needle on 2 ounce plastic bottle--
Cover included-- This is the most pracitical applicator we
This could also be used to apply
pin tightening fluids.
Use to dispense lubricants
and pin tightener
Plastic Oiler / Lubricant
plastic bottle-- One ounce size-- 4 inches overall.
Dispenses lubricants, pin tightener, and liquid graphite. Cap included.
Can be used to deliver lubricants into the tight
flanges drop by drop.
Old Part Number 51095A
