PIANO
REPAIR:
HAMMER WORK AND REPLACEMENT TOOLS
SEARCH THE WHOLE SITE
Other
tools not found on this page can be seen
by hitting links at the bottom of
this page.
Grand and Upright Piano Hammers
HAMMER
WORK TOOLS
These tools are
necessary if you intend to do a whole
set of hammers--
Even a whole
section. They assure you the best
chance of removing the old hammer
without damaging the shank.
Also, you can choose to buy hammers without
holes drilled and
do them yourself. For square grands this is absolutely
needed.
Part Number
Price

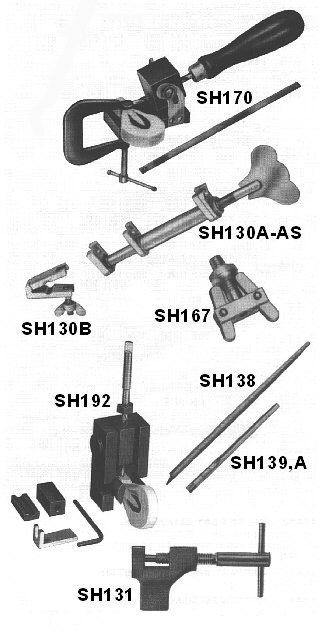

Hammer head and butt boring jig-
The correct angle of boring is set easily
by using the
adjacent hammer.
Essential where a number, of full set,
of hammers is being fitted-
SH170
$ 56.75
Hammer
Head Remover and Butt Extractor--
FOR UPRIGHTS ONLY
Hammers are often removed by crushing the molding. This damages
the shank and can break it.
This tool pulls the hammer molding
off by force under control.
The bevelled plate is for
angled hammers-
Spinets model
SH130AS $
44.50
Upright model
SH130A
$ 46.75
Do NOT use on grands
(see below)
Clamp- Used with 130AS and A
This
clamp is used where a shank is broken. It is attached so that the hammer can be
pulled
with the Extractor.
SH130B
$ 32.50
Grand Shank Press
(Hammer Head Remover)--
This
cute little rascal works great-- It presses the shank out of the hammer
head molding without destroying everything-- ONLY
for Grands--
SH131
$ 35.00
Boring Out Guide- When
the hammer shank breaks off at the hammer molding or at the butt,
cut the excess smooth, set up this tool like a small vise, then drill down
through it to
center the hole-
SH167
$ 53.50
Hammer shank reducer-- See in the
graphic up the page.
Universal handle needed- SH 26 below
Use to shave hammer shank if it is too large.
SH75
$ 26.25
Drills
for hammers and shanks- Has a point on the tip of the drill to show
when the
drill is just about through the grand piano hammer
molding. This allows for the glue to
exit the hole and
not block assembly due to hydraulics-
Upright-
7/32"
SH76A
$ 19.00
Grand- 13"64"
SH76B
$ 19.00
Spinet- 3/16"
SH76C
$ 19.00
Combination handle should be used for control
A power tool should only be used if you are using a drill press
where you have control of drilling depth.
Universal handle SH26 needed- See below
Grand Hammer Head Rasp-- Universal Handle 15152 needed-- SH138 $ 15.00
Grand Hammer Head Reamer--
It is
quicker and more accurate to ream the hammer head than to reduce the shank--
Square end for No. 989 Tap Wrench--
SH139 $ 28.00
Chuck end for Universal Handle SH26 needed-- See below
SH139A
$ 38.00
Hammer Felt Head Iron--
Used to iron hammer heads and harden and smooth them Electric soldering
iron type
heating unit and handle, but in place of the normal
soldering tip, a brass iron is attached.
Made by Weller-- 80
watts
SH905 $ 113.25
Same as above, but 40 watts SH905A $ 90.00
Same iron, but hard wood handle, and head must be heated
in a flame
SH113
$ 33.50
Hammer Shank Cutter- When replacing and repairing many
hammer shanks, this tool will make a clean and easy
cut of the wooden shank-
SH237
$ 12.50
Voicing
Tool-- Curved head for better angle of work
The professional way to voice hammers to quiet them-- Part
No. in graphic-- 160935A SH103C $ 34.00
Needles for above voicing tool--
20 per package
SH107
$ 4.00
Universal
Handle-- High Quality
Tool Steel with high impact plastic
handle.
Tools are held tight and released by turning
a compression knurled bezel. Fits all
regulating tools
which come without a handle.
See handle graphic at right
SH26
$ 38.00
FIND HAMMER SHANK REPAIR PARTS
Hammer Felt Hardening Treatments
Read
my instructions on
panic hammer repair, and
hammer shank repair
