Wheels on pianos take a lot of rough work when moving the piano two feet or two thousand miles. Original wheels, especially on old uprights, are often metal and will scratch floors and rip carpet. It is very smart to put better wheels on the piano. Brass wheels are classy and essential on grand pianos.
For all parts possible I give you a diagram identity number so you can go to the diagram and double check to see if you are ordering the right part. It is impossible to give a "Back" button to return to so many pages, so please use your browser's "Back" button.
Also, I give you a link to the page which tells how to make the repair or installation of the new part.
CLICK HERE FOR OUR PHONE NUMBERS
SEARCH THE WHOLE SITE
CLICK HERE to read our FREE Installation Instructions

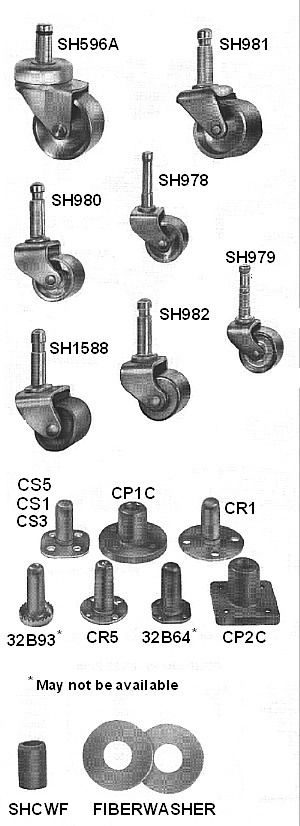

Part Description: Part Number Price
STEEL AND BRASS CASTERS
Grand Steinway Piano Deluxe Brass Casters-
Carrier and stem brass plated
Single wheel
1 inch face of wheel
CR1 or CP1C or CP2C Sockets
YOU MUST SPECIFY WHICH SOCKETS!
CP2C may fit inside brass cast ferrules
Set of three casters- Made by Darnell
See colored box below in Darnell section
2 inch Diameter-
SH596A
$ 495.00
Set
of four or the same caster
SH596 $ 602.00
Grand Piano
1-1/2 inch brass wheel
Carrier and stem brass
plated
Made by Darnell- Not shown
See colored box below in Darnell section
1-1/2 inch diameter Brass Caster
CP1C or CP2C Sockets- specify
3/4 inch face of single wheel-
Set
of three
SH597A
$ 396.00
Set of
four
SH597 $ 525.00
Grand
Casters- 1 3/8" inch diameter wheel-
Solid Brass wheels- Set of three-
Carrier and stem brass plated
CS1
socket unless otherwise specified SH980
$ 134.50
Same,
but wheel is 1¾" diameter--
CS1
socket unless otherwise specified
Set
of three
SH981 $167.50
Grand
Casters- 1 3/8" inch diameter wheel-
Same as SH980, but nickel plated
set of with CS1 sockets SH2620 $ 141.95
Spinet and Console Casters-
Same
as above,
But with CR3 sockets
1 3/8 inch diameter wheel-
Use for back casters on piano with
free standing front legs.
Set of two-
SH982
$ 95.00
Grand Casters- One
inch face
but Nickel Plated rather than
solid brass-
Wheel is 1-3/4 inch diameter
CS1 socket unless otherwise specified
Set of three- Like SH981 in the graphic SH977
$ 176.50
Alternative socket choices can be substituted to fit the original socket mounting holes in your piano.
Solid Brass for studio, console, or spinet--for free standing front legs
Carrier and stem brass plated
Smaller furniture stem-- Furnished with nylon friction fit sockets-
CR7
nylon socket provided with casters-- Not pictured above
11/16 inch face of wheel width- 1-1/4 inch diameter
Two casters
of this style-- Spinet and console front casters--
SH978 $ 56.00
Same
as SH978 above- But-- 9/16 inch wheel face- Set of four
CR7 socket unless otherwise specified
And, Brass plated wheel only
SH979 Not Available
Full size upright
casters- Cast Iron- Set of four- Similar to SH980 in style
CR3 socket unless otherwise specifie
1 3/8 inch dia- For studio pianos-
SH1588 $ 75.00
All casters you
buy from us come with sockets. Be sure to tell us what kind you have.
Description
Part number
Price
Stem- Nine sixteenths inch- 2-1/8 in. dia. round plate- without notch
SHCR1
$ 5.00 ea
For casters which have a clip ring in
the notch
Stem- Nine sixteenths inch- 2-1/8
in. dia. round plate- with notch
SHCR3 $
6.50 ea
For casters which have a notch with nothing in it
Stem- Same- Square plate 1-1/8 in.-
Not available
Stem- Same- Round plate 1-3/8
in.-
SHCR5 $7.50 ea
Stem- Same- Square plate 1-5/8 in.-
SHCS1
$ 6.50 ea
Stem- Same- Square plate 1-1/2 in.-
SHCS3 $ 5.00 ea
Stem- One half in.- Round grip
neck-
Not available
Stem- Fifteen Sixteenths in.- Round die-cast
plate 2-1/4 in.dia.-
SHCP1C $ 10.50
ea
Stem- Fifteen Sixteenths
in.- Square die-cast plate 1-13/16 in.-
SHCP2C $ 17.50 ea
Stem- Nylon furniture type- Not shown- Fit casters 977, 978,
979-
SHCR7 $ 1.00 ea
Wood spacer to fill holes which are too large for the new casters-
These spacers are sent free with all caster
sets we sell with the large stem diameter
CWF $ .90 each
Composition washers for leveling pianos by adding them when
installing casters- Dozen- SH1670
$ 6.00 /dozen
Also, raise the piano so that the new casters do not drag in the recessed
area.
You will have to drill holes
in the fiber washer for the mounting screws.
Use 1/4 to 1/2 inch longer screws if you add composition washers.
The
rubber wheeled casters are actually a hard high quality pliable plastic compound
which will not mark or dent floors. Metal wheels will leave trails in the
floor which
cannot be removed. Rubber casters also diminish the transfer of
sound into the
floor in apartments and condos. Having two wheels insures that
the wheels will not be
too high, and they will not collapse with age.

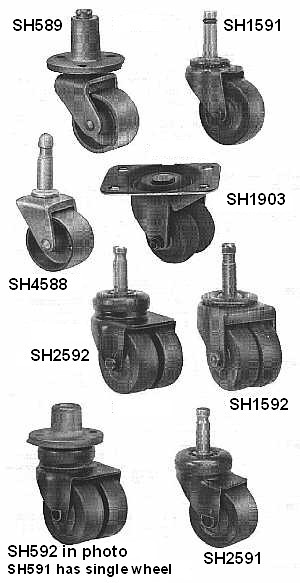

Part Description: Part Number Price
Upright iron casters with attached
cast iron sockets like CP1C above
Set of Four-
SH589 $ 89.50
These casters will mark wood,
tile, and most other hard floors.
We strongly
discourage their use
except on rough floor areas.
Upright cast iron wheels- Furnished
Solid wheel instead of as in graphic
with
CR3 sockets- Set of four-
See 328112 in graphic
SH4588 $ 100.50
Upright double wheels- 2 in. dia.-
Ball
bearings impregnated with
graphite- Set
of four-
Rubber wheels will not
damage floors
CR1 or CS1 sockets included:
Round for uprights, square for grands
unless you specify otherwise
Wooden
grommets also provided
Set of four-
SH1592 $ 97.50
Same as Above-
But, set of THREE for grands SH1592A $
78.00
Same as Above-
But, set
of TWO
SH1592-1/2
$ 55.00
NOTE REGARDING RUBBER CASTERS:
If you have a full sized upright made in the early 1900's, you need a heavier duty caster
because of the weight of the piano. We recommend the SH2592 found below. (Scroll down.)
Also, if you want the best caster for nice wood or tile floors, get the SH2592 casters.
Plate Mounted Casters - Double wheel
BUT, mounted by 4 inch by 2-3/4 inch top plate- Set
of four-
SH1903
$ 95.00
Only use this caster where
damage to mounting area is severe
| DARNELL CASTERS have a double race of ball bearings. The upper race of ball bearings takes the load, and the lower race takes the side thrust. The axle is designed to be serviced and lubricated when necessary. The models with cast iron sockets allow for the sockets to be removed. Do not order the casters with the cast iron sockets if your piano has the drop forged (pressed steel) sockets. |
Old style mounting
socket of cast iron
These casters with the cast iron sockets are for pianos from the turn of the century
Double Wheeled casters
Two inch diameter wheel with 3/4 inch face on each wheel
Set of Four
SH592 $ 265.00
Set of Three
SH592A
$ 220.00
Casters meant to be mounted
in drop forged (pressed steel) sockets
Double Wheeled casters-- Best Caster for all floors
Two inch diameter with 3/4 inch face on each wheel
Sockets- CR3 or CS3
Set of four-
SH2592 $
215.50
Set of Three-
SH2592A $ 170.00
All casters come with mounting sockets (and wooden grommets where drop forged sockets are sent).
All the above- [ Repair instructions- Chapter 7, # 10 ]
These
are used mostly on heavy pianos, and they are essential to heavy grands. Don't
skimp here.
Hopefully, you can understand
what you see well enough. There is no formal description of these casters.
Only
the wheel and socket dimensions are given. Some retro fitting may be required.
We do not have the socket stem diameter
at this time.
NOTE: the price of these casters is quite volatile because they are imported and they are brass. Call for current price and availability.

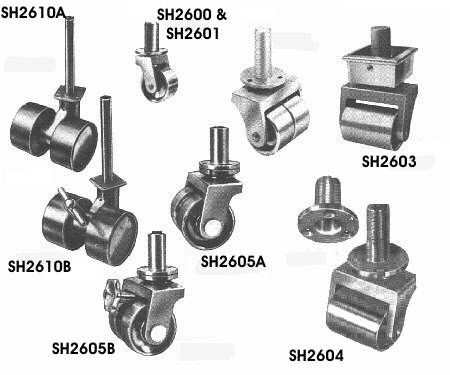

Part Description: Part Number Price
Wheel- 2" diameter-- Socket- 7/8" diameter -- 1" wide wheel SH2600 $ 147.00 EACH
Wheel- 1-7/8" Diameter -- 13/16" socket -- 1-1/2"
wide wheel
This caster is also low profile in height and is similar
in
SH2601 $ 149.00 EACH
Wheel- 1-7/8" diameter-- Socket- 13/16" diameter -- 2-3/8" wide wheel SH2602 $ 274.00 EACH
Wheel- 1-3/4" diameter-- Socket- 13/16" diameter
--
2"
wide wheel -- 2" inside width ferrule --
SH2603
$ 250.00 EACH
Wheel- 3-3/4" diameter-- Socket- 13/16" diameter--
Caster has a brake --
5-3/8" wide wheel. It is common to use two casters with
brakes per piano
to stop piano from wandering
SH2610B $ 751.00 EACH
Wheel- Same as "B" above but no brake SH2610A $ 619.00 EACH
Wheel- 3-1/2" diameter-- Socket- 1-1/8" diameter
Caster has a brake --
3-3/8" wide wheel. It is common to use two casters with
brakes per piano
to stop piano from wandering
SH2605B
$ 785.00 EACH
Wheel- Same dimensions as "B" above, but no brake SH2605A $ 650.00 EACH
Wheel- 1-7/8" diameter-- Socket - 1-1/8" diameter -- 2-3/8" wide wheel SH2604 $ 299.00 EACH
WARNING: These special casters are priced by the EACH!
Note: These casters
can be returned ONLY if they are perfect
and can be sold as new. Also,
there will be a restocking fee of
20% on all returns-- No exceptions.
For returns, your shipping both ways will NOT be refunded.
If
you order the casters, and then cancel your order after the
casters have drop
shipped from our supplier, there will be a
20% restocking fee against your
refund.
Caveat
Emptor Please. Order only if you are a serious buyer.
We
require pre-payment by check for these casters. Thanks.
We ship these
casters world wide, but there is NO return policy at all.
SEND
E-MAIL for prices. Allow 4 to 6 weeks for delivery.
